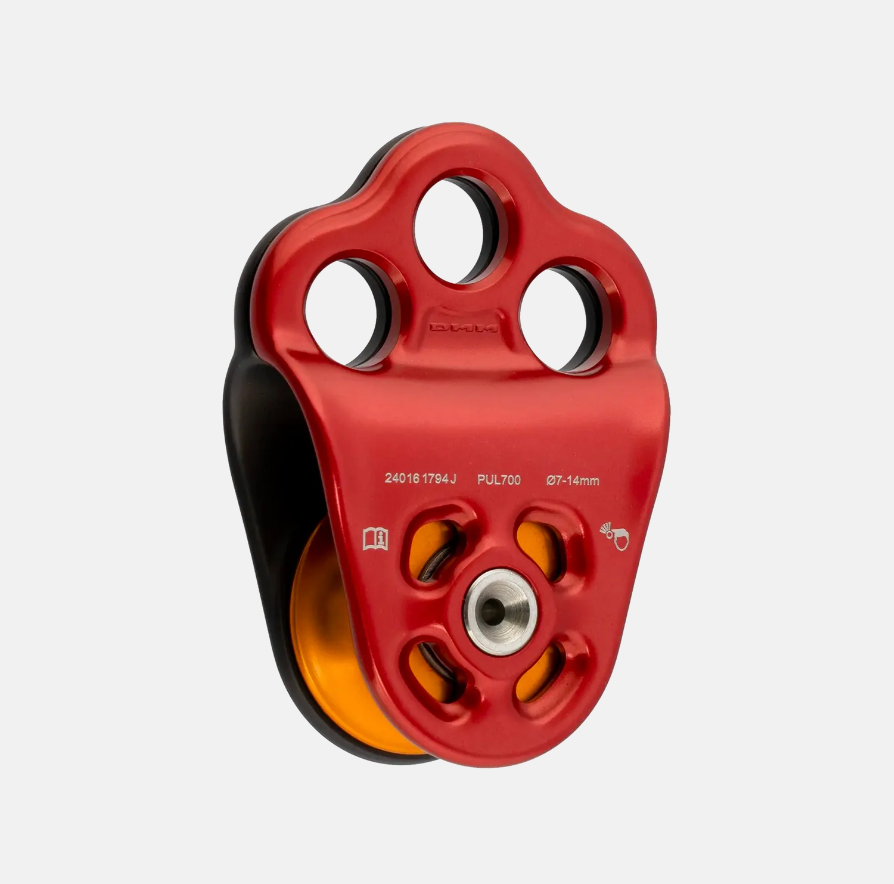

DMM Triple Attachment Pulley 2
DMM Triple Attachment Pulley 2
FEATURES
- Bushings have been replaced with sealed bearings, offering improved efficiency
- Updated straight sides tend the hitch better
- Extra volume in U shape rather than V shape above sheave means rope feeds in more easily when used in hitch climber system
- Rigging plate helps organise single or multiple attachments
- Fairlead flares help maintain high working efficiency
- Compatible with most carabiner shapes and many textile connecting elements including rope and webbing
- Size of attachment holes reduce probability of unwanted rotation of locking carabiners
- Direct connection to textile components at the round edged attachment holes, helping to reduce system costs, increase lift height, minimise space required and enhance tolerance to torsion
- Side plate shape allows an autoblock knot to function when the rope approaches the sides as well as at the bottom of the pulley
- Tamperproof construction
Tech Specs
Product Name | Product Code | Colour | MBS | WLL | Dimensions | Weight | Rope Diameter | Certification |
---|---|---|---|---|---|---|---|---|
Triple Attachment Pulley 2 Red | PUL700RD | Red | 30kN | 6kN | 94 x 68 x 33mm | 150g | 14mm Max | EN12278:2007 |
Triple Attachment Pulley 2 Matt Grey | PUL700MG | Matt Grey | 30kN | 6kN | 94 x 68 x 33mm | 150g | 14mm Max | EN12278:2007 |
