DMM Ultra O 3PK

DMM Ultra O 3PK


Oval for symmetry; shape allows central positioning of devices

Oval connectors are popular in rope access and tree care situations where multiple connectors, slings, ropes or even pulleys can be connected. They are equally at home in fall arrest situations or as part of a pre-rigged rescue system. The round basket shape allows any of the connection points to self-centre when weighted - this helps avoid the unnerving click that often happens with a more D-shaped connector. The symmetrical basket mean rotation within systems is not required as they sit comfortably either way round.

Keylock clean nose for snag free connection

DMM's patented 'Taperlock' closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.

Captive bar option for security

Many of our connectors can be supplied cross-drilled to accommodate captive bars. This means that the lanyard or attachment cannot be removed and ensures that the direction of force applied in the event of a fall is along the major axis of the connector, giving maximum strength and holding power. The captive bars themselves are not for load bearing use.

TECH SPECS

Product Name Product Code Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification
Ultra O Locksafe Titanium A327 63 x 109mm 74g 25kN 12kN 7kN 19mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Locksafe Lime A327LG 63 x 109mm 74g 25kN 12kN 7kN 19mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Locksafe Matt Grey A327MG 63 x 109mm 74g 25kN 12kN 7kN 19mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Locksafe Orange A327OR 63 x 109mm 74g 25kN 12kN 7kN 19mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Locksafe Red A327RD 63 x 109mm 74g 25kN 12kN 7kN 19mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Screwgate Titanium A322 63 x 109mm 68g 25kN 12kN 7kN 22mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Screwgate Lime A322LG 63 x 109mm 68g 25kN 12kN 7kN 22mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Screwgate Matt Grey A322MG 63 x 109mm 67g 25kN 12kN 7kN 22mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Screwgate Orange A322OR 63 x 109mm 68g 25kN 12kN 7kN 22mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Kwiklock Titanium A323 63 x 109mm 74g 25kN 12kN 7kN 19mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Durolock Titanium A324 63 x 109mm 84g 25kN 12kN 7kN 20mm EN362:2004 B
EN12275:2013 X/B

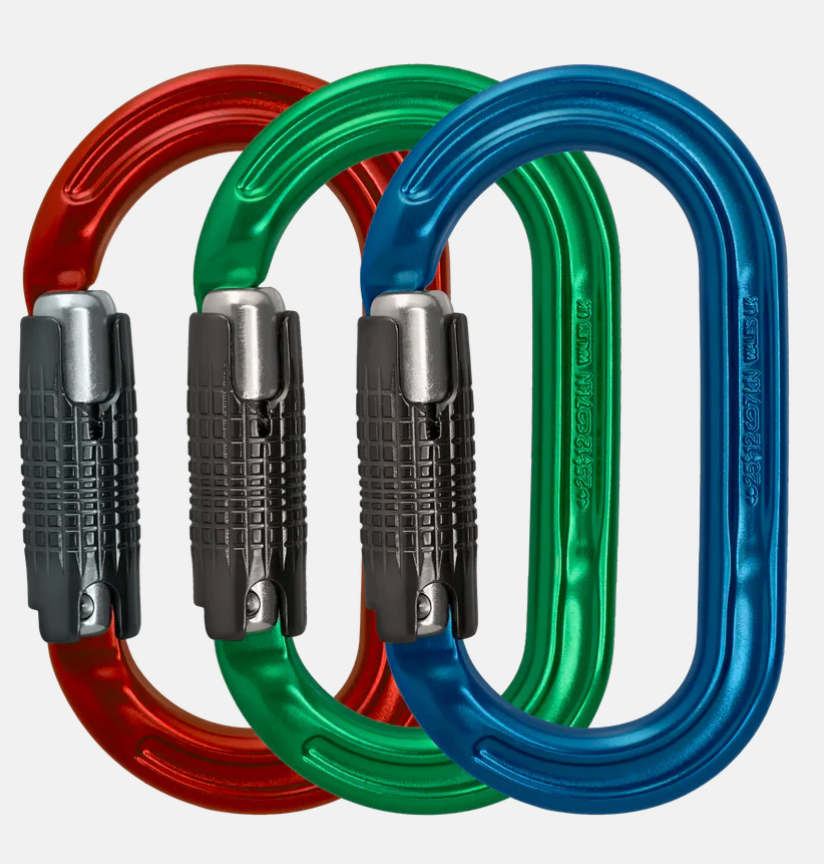

Ultra O Locksafe 3 Pack Blue/Red/Green A327-P3 63 x 109mm 222g 25kN 12kN 7kN 19mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Locksafe 3 Pack Lime/Grey/Orange A327-P3A 63 x 109mm 222g 25kN 12kN 7kN 19mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Screwgate 3 Pack Blue/Red/Green A322-P3 63 x 109mm 204g 25kN 12kN 7kN 22mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Screwgate 3 Pack Lime/Grey/Orange A322-P3A 63 x 109mm 204g 25kN 12kN 7kN 22mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
Ultra O Locksafe Captive Bar Titanium A327CB 63 x 109mm 76g 25kN 12kN 7kN 19mm EN362:2004 B/T
EN12275:2013 X/B/T
UIAA121:2009
