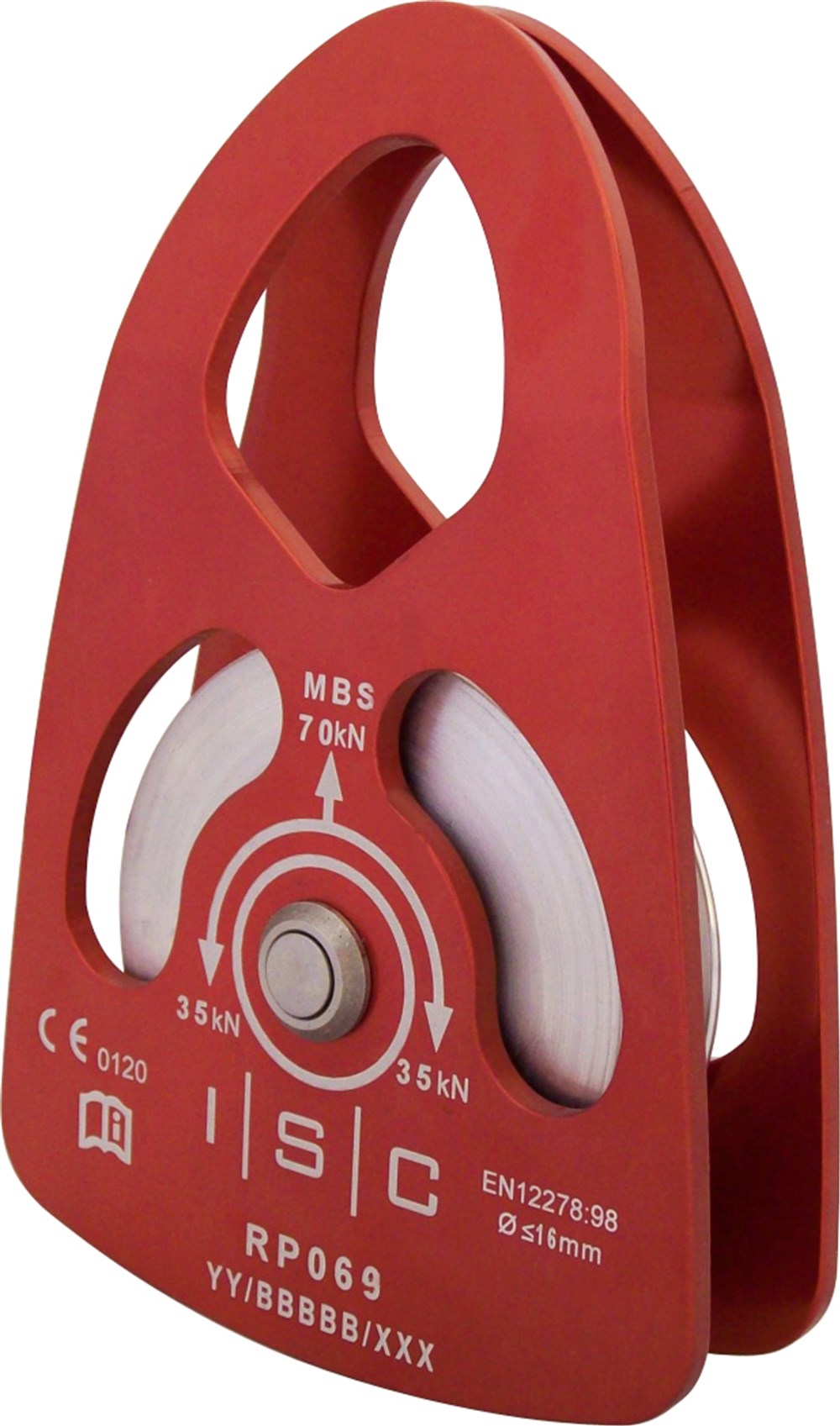

Extra Large Single Pulley 70kN - Bushing//J4

Extra Large Single Pulley 70kN - Bushing//J4

All Pulleys in our latest Heavy-duty Prussik range have tamper-proof Rivets, in compliance with CE EN12278 (2007) & NFPA (1983)*

These Pulleys are available in Aluminium or Stainless Steel, with Bushings or Roller Bearings. Bushings are ideal for high loads at low speeds and Roller Bearings are ideal for low loads at high speeds.

Fixed Wheel Shear Reduction versions are available on request**

*Accredited in the UK, by a third party test house

**Extra charge Applies

Technical Information

Compatible with rope diameter (mm)  19mm (3/4")
(MBS) Minimum Breaking Strength (kN)  70
(MBS) Minimum Breaking Strength (lbf)  15736
Wheel material  Aluminium
Finish  Anodised
Colour  Red or black
Weight (grams)  440
Weight (ounces)  15.5

Approved Standards
CE EN 12278

Notes
Individually Serial Numbered

View full details
