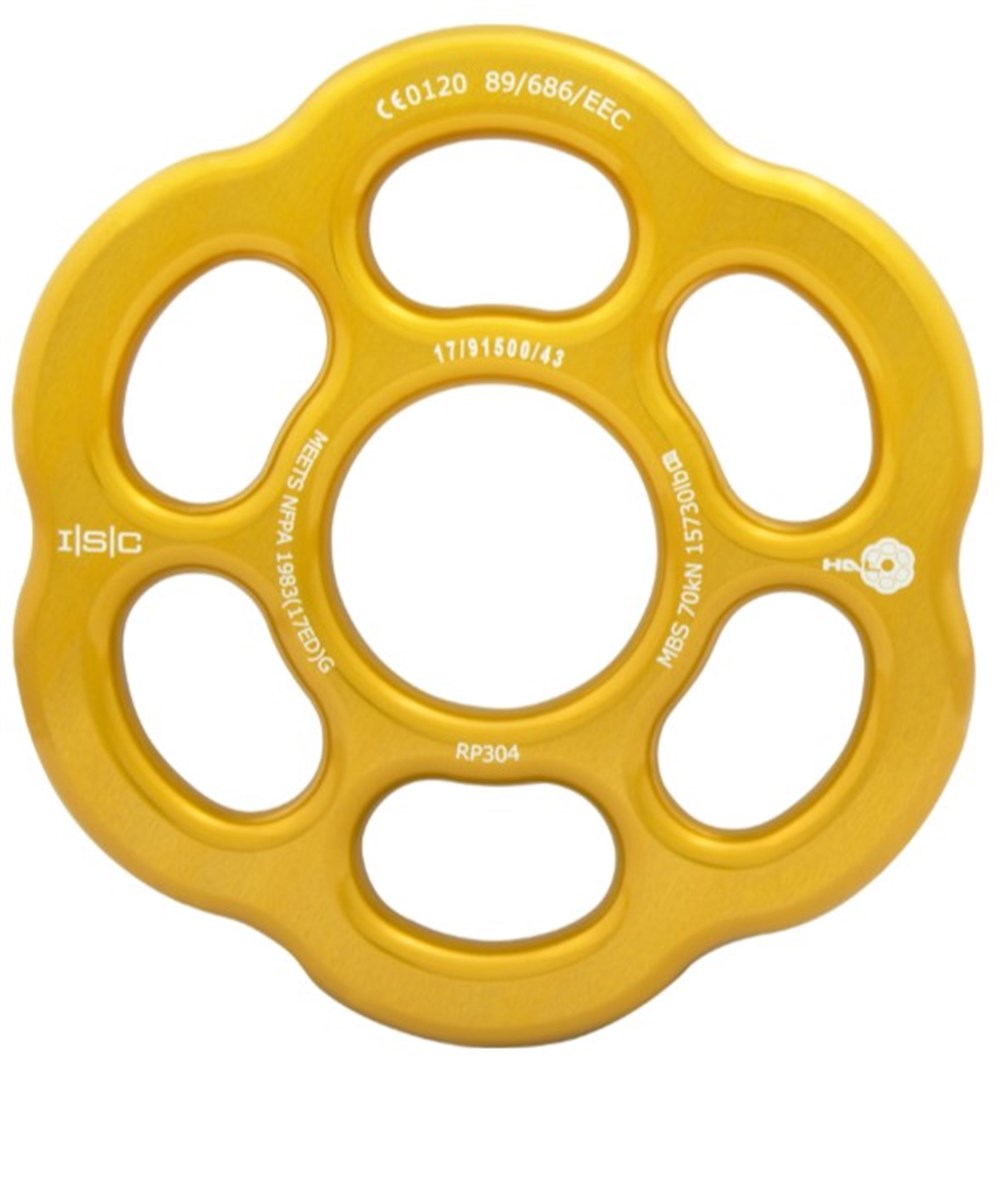

HALO Rigging Plate Large 70kN Gold//L5

HALO Rigging Plate Large 70kN Gold//L5

HALO Rigging Plates form part of a compatible system and were developed to match the ratings on our Karabiners and Prussik pulleys, at 40kN/ (8992lbf), 50kN (11,240lbf) and 70kN (15,736lbf).

Each plate is manufactured from aerospace grade Aluminium and feature uniquely shaped apertures which allow for loading with multiple Karabiners simultaneously. CNC machined radiused edges make the apertures rope and webbing friendly.

Technical Information

(MBS) Minimum Breaking Strength (kN)  70
(MBS) Minimum Breaking Strength (lbf)  15736
Serial numbering  As standard
EZYiD  Available on request
Finish  Anodised
Width (mm)  165
Width (inches)  6 1/2

Approved Standards
89/686/EEC
NFPA 1983 (17ED)G
