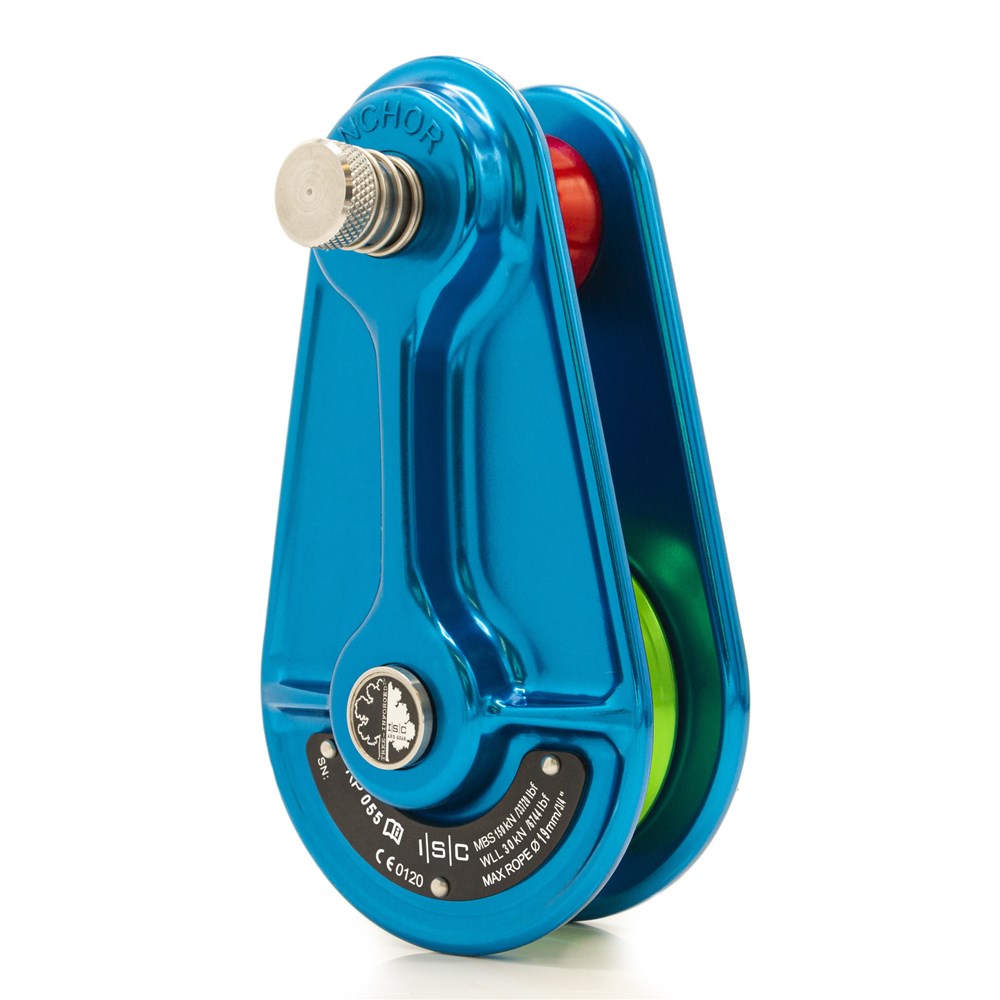

Medium Rigging Pulley up to 20mm Rope 150kN Blue with Green Wheel

The small and medium versions are now manufactured using Hot Forged Technology, combined with high quality materials and components. These blocks are rope friendly, durable and extremely robust. These features combined give maximum security and strength, when the block is rigged as part of an impact system.

Apart from the aesthetically pleasing curves, the ISC impact pulley is designed to work (together with textiles) to absorb the huge forces which are created by the harsh dynamics of heavy Arborist work. The side plates are produced using the best quality hot forged Aluminium and the special manufacturing process allows these pulleys to offer a highly impressive strength to weight ratio.

Technical Information

Rope diameter range (mm)  Max 20mm (3/4") Working Line Max 29mm (1+1/4") Topping Strop
(WLL) Working Load Limit (kg)  3000
(WLL) Working Load Limit (lbs)  6600
Serial numbering  As standard
Pulley wheel colour  Green
Anchor wheel colour  Red
Wheel material  Aluminium
Finish  Anodised
Colour  Blue
Weight (grams)  2166

Approved Standards
CE Approved

Notes
Individually Serial Numbered
